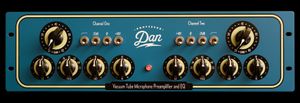

Professor Dan - CUSTOM Vacuum Tube EQUIPMENT
AUDIO SAMPLES - All tracks below feature a Professor Dan pro-audio product.
Features
- 67 dB Gain
- XLR Inputs/Outputs
- -25 dB PAD
- +48V Phantom Power
- Ø Polarity Switch
- High Pass Filter
- Fixed Lo and Hi EQ bands
- Selectable MID frequencies
- Mic and line level operation
Carefully-Selected Components
- Cinemag transformers & inductors
- V1 NOS General Electric 6072a tubes
- V2-V5 JJ 12AY7 and 12BH7 tubes
- Wima film capacitors
- Elma and Grayhill Rotary Switches
- External power supply for low noise
Specifications
- 20 Hz- 20 kHz (+/- 0.2 dB)
- 8 Hz - 62 kHz (+/- 0.5 dB)
- -3dB @ 3 Hz and 85 kHz
- Max Output 28 dBu (1% distortion at 1 kHz into 600 ohm)
- Dim (3U): 19" W x 5.25" H x 11" D
